TPS63031DSKT
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS63031DSKT
Datasheet:
Description:

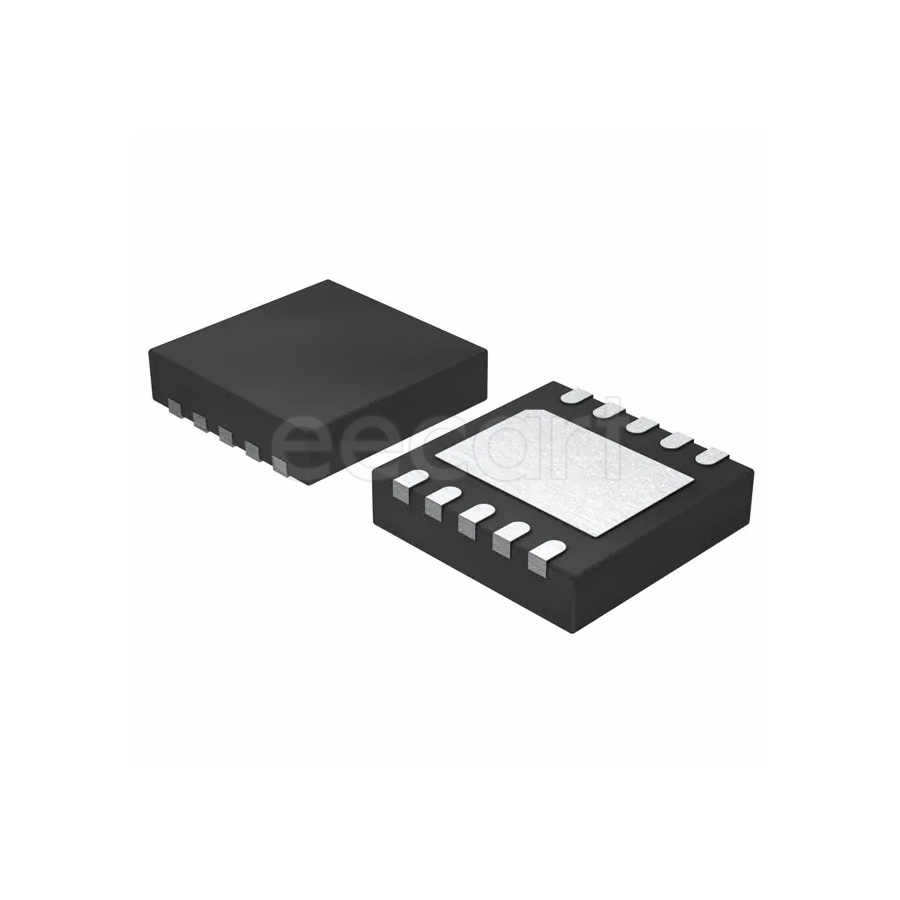

Voltage Regulators - Switching SON-10 SMD/SMT Buck-Boost Fixed 3.3 V
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Width | 2.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 800 µm |
| Thickness | 0.75 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 2.4 MHz |
| Min Input Voltage | 1.8 V |
| Output Current | 800 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Max Output Current | 800 mA |
| Quiescent Current | 25 µA |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Switching Frequency | 2.4 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Efficiency | 96 % |
| Min Output Voltage | 3.267 V |
| Nominal Output Voltage | 3.3 V |
| Max Output Voltage | 3.3 V |
| RoHS | Compliant |
| Packaging | Reel |
| Function | Step-Up/Step-Down |
Stock: 626
Distributors
pcbx
pcbxUnit Price$2.14673
Ext.Price$2.14673
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.14673 | $2.14673 |
| 10 | $1.62094 | $16.20940 |
| 25 | $1.48330 | $37.08250 |
| 50 | $1.40920 | $70.46000 |
| 100 | $1.33882 | $133.88200 |
| 300 | $1.26812 | $380.43600 |
| 500 | $1.20117 | $600.58500 |
| 1000 | $1.16441 | $1164.41000 |
| 3000 | $1.12617 | $3378.51000 |
| 5000 | $1.08918 | $5445.90000 |
